Product Details
Place of Origin: China
Brand Name: ledmanner
Certification: CE ROHS FCC
Model Number: P3.91
Payment & Shipping Terms
Minimum Order Quantity: 1sqm
Price: USD480-1880/㎡
Packaging Details: flight case
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 1000㎡/week
Application: |
Indoor And Outdoor |
Module Resolution: |
64*64 |
Pixel Pitch: |
3.91mm |
Display Function: |
Video |
Maintenance: |
Rear Maintenance |
Service Life: |
10000-75000 Hours |
Application: |
Indoor And Outdoor |
Module Resolution: |
64*64 |
Pixel Pitch: |
3.91mm |
Display Function: |
Video |
Maintenance: |
Rear Maintenance |
Service Life: |
10000-75000 Hours |
Stage Commercial Screen Panel Cabinet Rental LED Display Screen P3.91mm
Quick Details:
● Integrated power design saves time
● Double quick lock design
● More durable, single operation
● Quick installation and maintenance
● Modular design of power control
● No wire is needed to connect
● The cabinet is light and thin
● Unique module design, no left and right
● Private design of PCB
● Same HUB could useing all kinds of pixel
● Wide viewing angle, no reflection
Advantage:
1. Screen cabinet is made of die-casting aluminum material, the effect of heat dissipation is remarkable.
2. Light weight, the weight of the cabinets less than 12 kg; easy installation.
3. The module can be quickly removed and easy to maintain.
4. Simply perfect appearance, cabinet is adopted die casting molding, high precision and can be realized fine adjustment.
5. Has a great universality and easy to upgrade.
6. Different pixel pitches are available.
Specification:
|
Model |
p4.8 |
|
Pixel pitch(mm) |
4.8 |
|
Configuration |
SMD2121 |
|
Module dimension |
(W)250mm x(H)250mm |
|
Module weight(kg) |
0.77 |
|
Panel dimension(mm) |
(W)500x(H)1000x(T)80 |
|
Panel weight(kg) |
12 |
|
Pixel density(dots/㎡) |
43264 |
|
Flatness error(mm) |
≤0.1 |
|
Viewing angle |
120°/120°(Horizontal/Vertical) |
|
Brightness(cd/㎡) |
6000 |
|
Color temperature(K) |
5000~9500 (Adjustable) |
|
Contrast |
4000:1 |
|
Repetition frequency |
50/60Hz |
|
Refresh frequency |
1920Hz |
|
Gray scale(bit) |
16 |
|
Ave. power(W/㎡) |
340 |
|
Max power(W/㎡) |
840 |
|
Working temp./humidity |
-10~40℃/10%~80%RH |
|
Storing temp./humidity |
-20~60℃/10%~85%RH |
|
Panel structure |
Die-casting aluminum |
|
Maintenance |
Rear |
|
Protection |
IP65/IP54 |
|
Driving mode |
Constant current driver |
|
Scanning |
1/9 |
|
Power requirements |
AC90~264V, 47~63Hz |
|
Life time(hrs) |
100,000 |
|
Certificate |
CCC/TUV-CE/ETL, etc. |

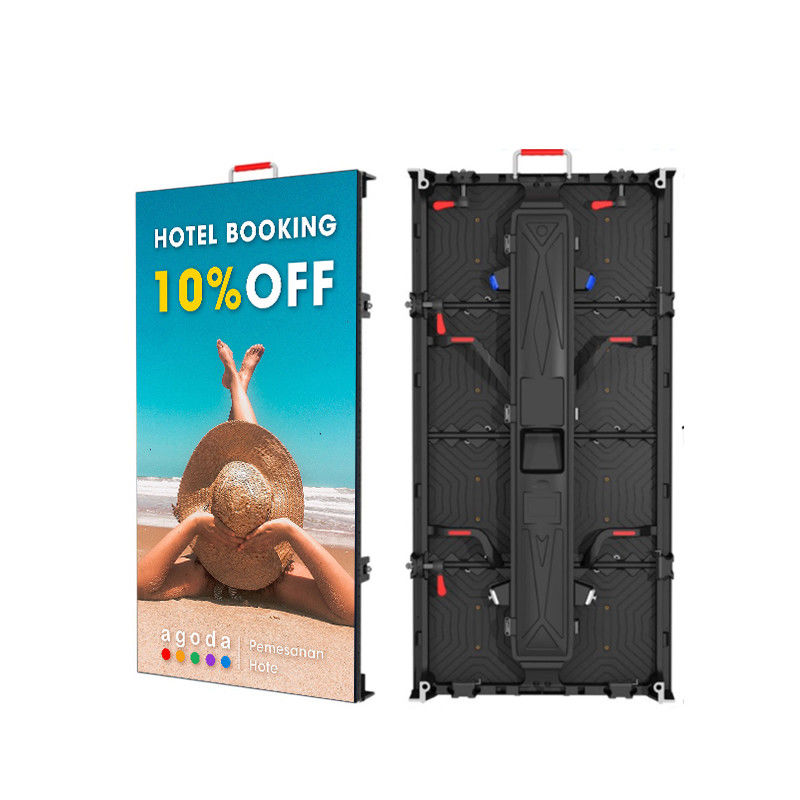

Product Image:
Features:
1. Ultra-thin & ultra-light
2. Die casted AL cabinets, high precision with seamless splicing
3. Standard cabinet size: 500x500mm, convenient for area calculation
4. Highly effective & quick for transportation and screen assembling
5. SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6. Special buckles structural connection between the cabinets,don’t need other tools
7. Cabinets are in common use for standard modules,shorten production cycle
Description:
Outdoor full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, staticproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Application:
1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
2. Information source can be camera, video, VCD, DVD, LD, TV and so on.
3. Clear picture without flicker and distortion.
4. Brightness, contrast, saturation can be adjust by itself and manual.
5. Show everything with your PC does synchronously.
Good service:
Pre-producing:
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing:
1. Producing progress updating for clients.
2. Provide Installation drawing for clients.
After service:
1. 2 years free maintenance.
2. 7 days a week, 24 hours a day on-line technical support for any clients.
3. Free training for customers in factory.
4. Local Installation Guidance Service.
FAQ:
4. How is your delivery time?
We delivery as contract on time, All kinds of led module have in stock. We will be fine as compensation.
5. What is your products packing?
We provide 3 kinds of packing case: carton paper case,wooden packing case and flight packing case.Carton paper case for led module
Wooden packing case for heavy iron cabinetFlight packing case for rental aluminum die-casting cabinet
6. What is your quality guarantee:
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,RoHS certificates.
7. What is your company’s service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
